Handheld Thermal Cameras

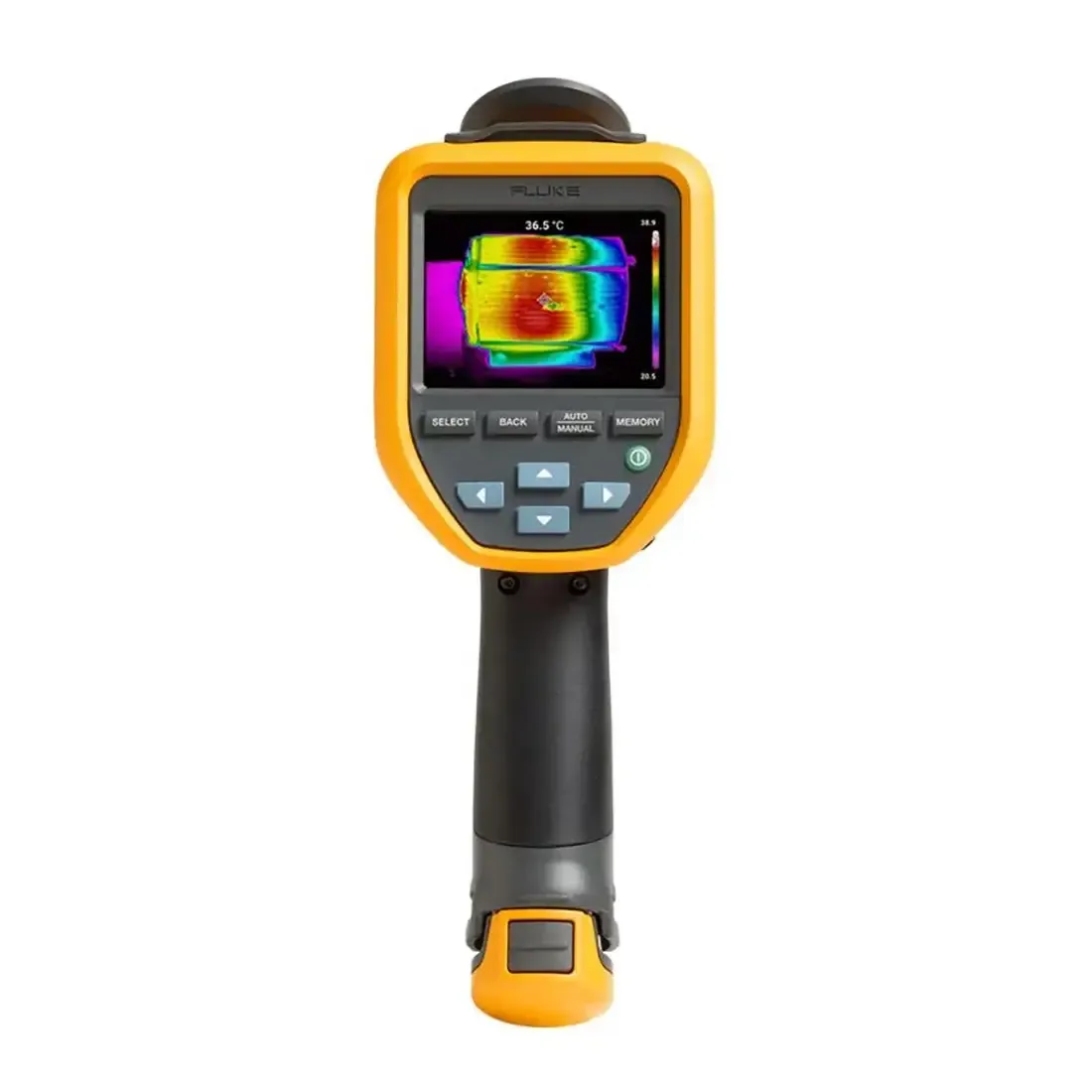

Fluke TiS55+ 27Hz

Why choose it

Its visible image overlay helps you locate a thermal hotspot on the component, with a 3.5 inch screen for checking the image on site.¹

Before you buy

The runtime rating is at least 3.5 hours with wireless use excluded; allow for your settings and working conditions when planning inspections.¹

Explore Handheld Thermal Cameras Explore specifications

Detail overlay: Yes¹
Screen size: 3.5 in¹
Battery runtime: At least 3.5 h (Tested configuration: Continuous withoutWiFi. Actual life depends on settings and usage.)¹

The details

Specifications

Core specifications6

Fluke TiS55+ 27Hz: core specifications
Thermal resolution	49,152 pixels¹
Battery runtime	At least 3.5 h (Tested configuration: Continuous withoutWiFi. Actual life depends on settings and usage.)¹
Screen size	3.5 in¹
Weight	885 g (0.885 kg) (Tested configuration: Battery included.)¹
Visible camera	Yes¹
IP rating	IP54¹

More specifications5

Fluke TiS55+ 27Hz: more specifications
Accuracy: degree component	2 °C (Tested configuration: Fixed degree magnitude component; actual±2°C or2% whichever greater, at25°C ambient.)¹
Image storage	∼500 images¹
Detail overlay	Yes¹
Power options	Lithium-ion rechargeable battery¹
Focus	Manual and fixed focus¹

Specifications not documented (10)

Thermal sensitivity, Maximum measurable temperature, Frame rate, Wireless, Minimum measurable temperature, Body style, Laser pointer, Super-resolution enhancement, Data port, Add-on lenses.
