Handheld Thermal Cameras

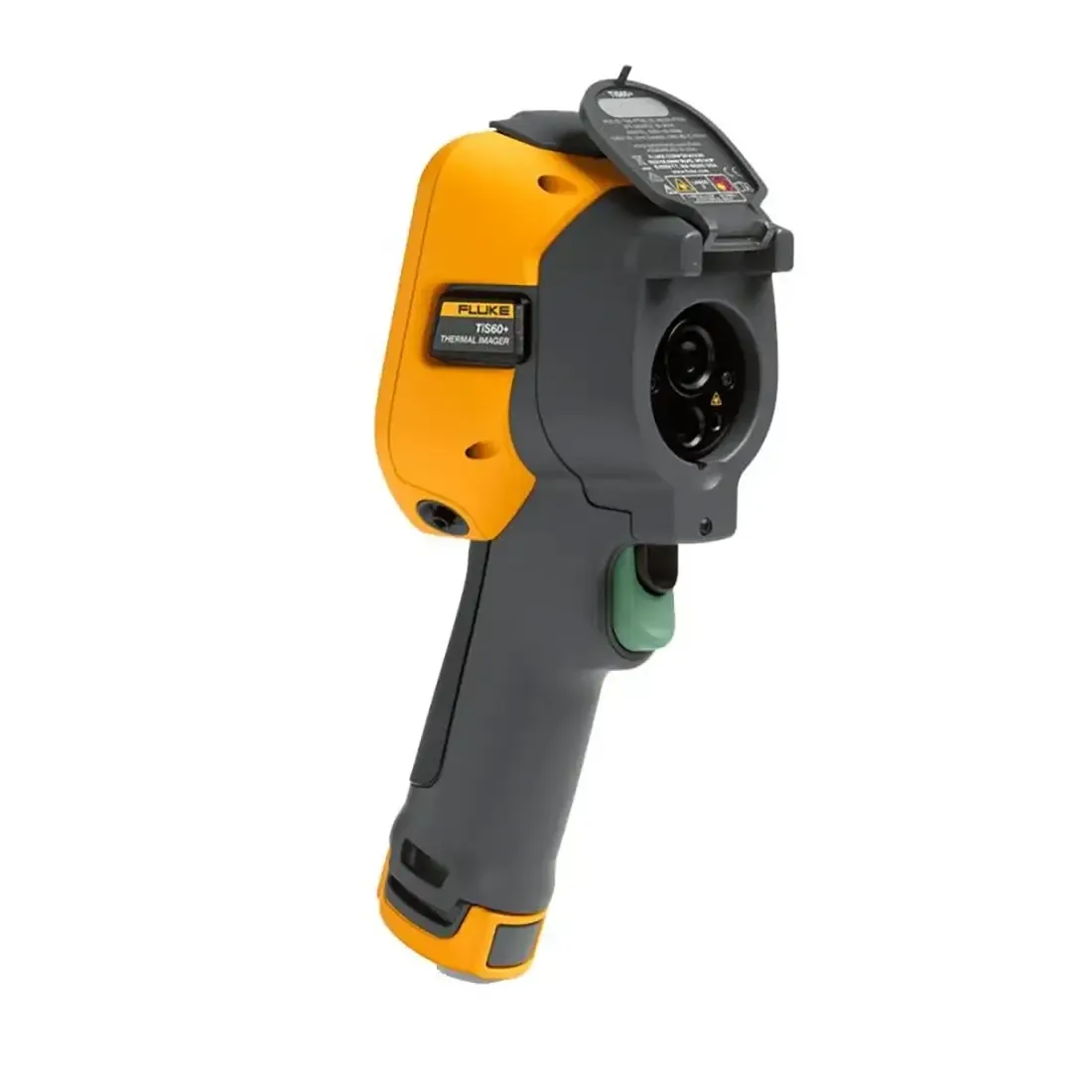

Fluke TiS60+ 30Hz

Why choose it

The visible image overlay helps you locate a thermal hotspot on the object, with a 3.5 inch screen for checking the image on site.1

Before you buy

The fixed-focus lens has a 46 cm minimum focus distance, so check your working distance before choosing it for close inspections.1

Detail overlay
Yes1
Screen size
3.5 in1
Focus
Fixed (Configuration: Fixed focus minimum46cm; no manual or macro focusing promise.)1

The details

Specifications

Core specifications8
Fluke TiS60+ 30Hz: core specifications
Thermal resolution76,800 pixels1
Thermal sensitivityUp to 45 mK (Environment: 30°C target temperature; Configuration: Best possible sensitivity.)2
Battery runtime4 h (Configuration: Continuous use per battery pack; do not double the runtime because two packs are included.)1
Screen size3.5 in1
Frame rate30 Hz (Configuration: Selected30Hz package5133399, not9Hz5133402.)1
Weight720 g (0.72 kg) (Configuration: Battery included.)1
Visible cameraYes1
IP ratingIP541
More specifications6
Fluke TiS60+ 30Hz: more specifications
Accuracy: degree component2 °C (Configuration: Fixed degree magnitude component; actual±2°C or2%, whichever is greater, at25°C nominal.)1
Image storageInternal 4GB memory and 4GB micro SD card1
Laser pointerYes1
Detail overlayYes1
Power optionsTwo lithium ion smart battery pack1
FocusFixed (Configuration: Fixed focus minimum46cm; no manual or macro focusing promise.)1
