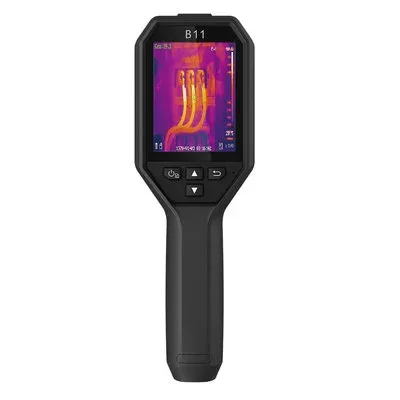

HIKMICRO B11

Why choose it

The visible-camera fusion and picture-in-picture views help you match a thermal hotspot to the object, with a 3.2 inch screen for checking the image on the camera.¹²

Before you buy

With the standard lens, check the 0.3 m minimum focus distance before planning close-up inspections.¹

Explore Handheld Thermal Cameras Explore specifications

Visible camera: Yes¹
Detail overlay: Yes¹
Screen size: 3.2 in²

The details

Specifications

Core specifications9

HIKMICRO B11: core specifications
Thermal resolution	27,648 pixels¹
Thermal sensitivity	Less than 40 mK (Environment: 25°C; Tested configuration: F# = 1.0)¹
Battery runtime	Approx. 6 h¹
Screen size	3.2 in²
Frame rate	25 Hz¹
Weight	Approx. 380 g¹
Wireless	Wifi¹
Visible camera	Yes¹
IP rating	IP54¹

More specifications7

HIKMICRO B11: more specifications
Accuracy: degree component	2 °C (Environment: Ambient 15°C to 35°C; object above 0°C; Tested configuration: Maximum of ±2°C and ±2%)¹
Image storage	Built-in 16 GB flash memory¹
Detail overlay	Yes¹
Super-resolution enhancement	Yes (Tested configuration: On captured thermal images)¹
Data port	USB Type-C¹
Power options	Rechargeable Li-ion battery¹
Focus	Focus Free (Tested configuration: Minimum focus distance 0.3 m (0.98 ft))¹
