Handheld Thermal Cameras

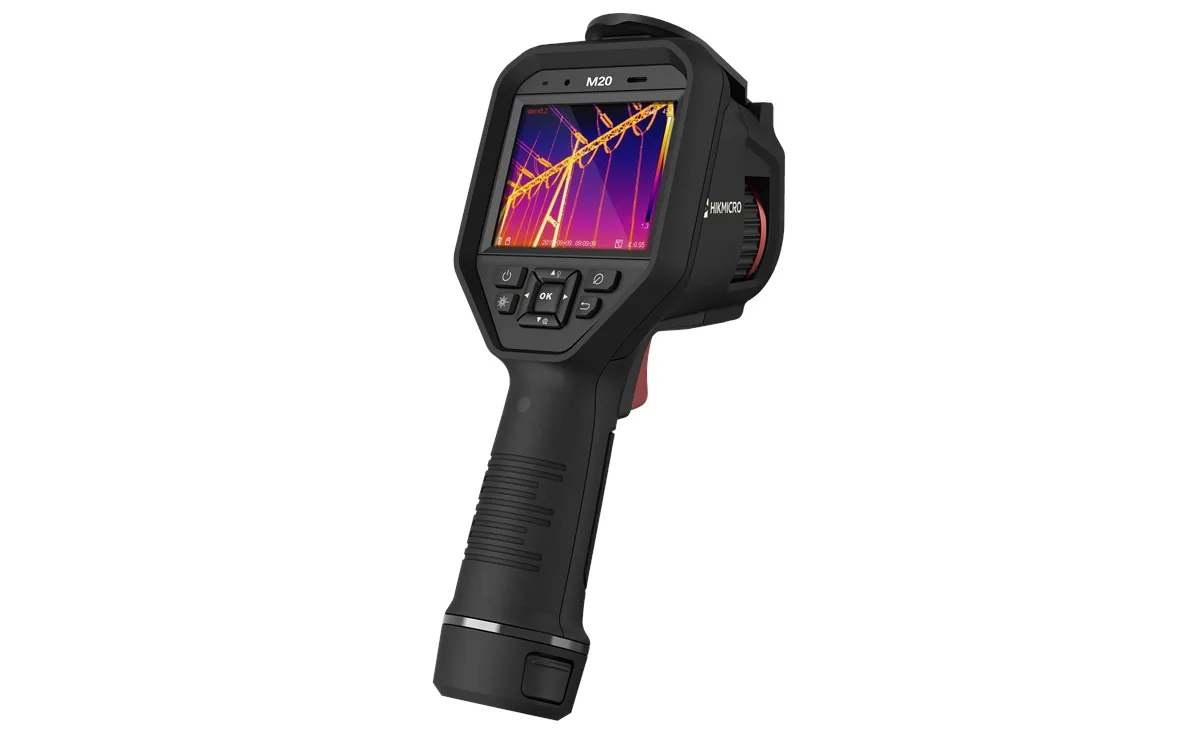

HIKMICRO M20
Why choose it
Manual focus lets you adjust the thermal view for your inspection distance, while the 3.5 inch touchscreen keeps the image on the camera.1
The details
Specifications
Core specifications10
| Thermal resolution | 49,152 pixels1 |
|---|---|
| Thermal sensitivity | Less than 40 mK (Environment: 25°C; Tested configuration: F#1.0)1 |
| Battery runtime | Approx. 6 h1 |
| Screen size | 3.5 in1 |
| Frame rate | 25 Hz1 |
| Weight | Approx. 660 g1 |
| Wireless | Wifi1 |
| Visible camera | Yes1 |
| Minimum measurable temperature | -20 °C1 |
| IP rating | IP541 |
More specifications7
| Image storage | Extendable 32 GB Micro SD Card1 |
|---|---|
| Laser pointer | Yes1 |
| Detail overlay | Yes1 |
| Super-resolution enhancement | Yes (Tested configuration: Captured images and live view)1 |
| Data port | USB Type-C1 |
| Power options | Interchangeable and rechargeable Li-ion battery1 |
| Focus | Manual Focus1 |
Specifications not documented (4)
Maximum measurable temperature, Accuracy: degree component, Body style, Add-on lenses.
