Handheld Thermal Cameras

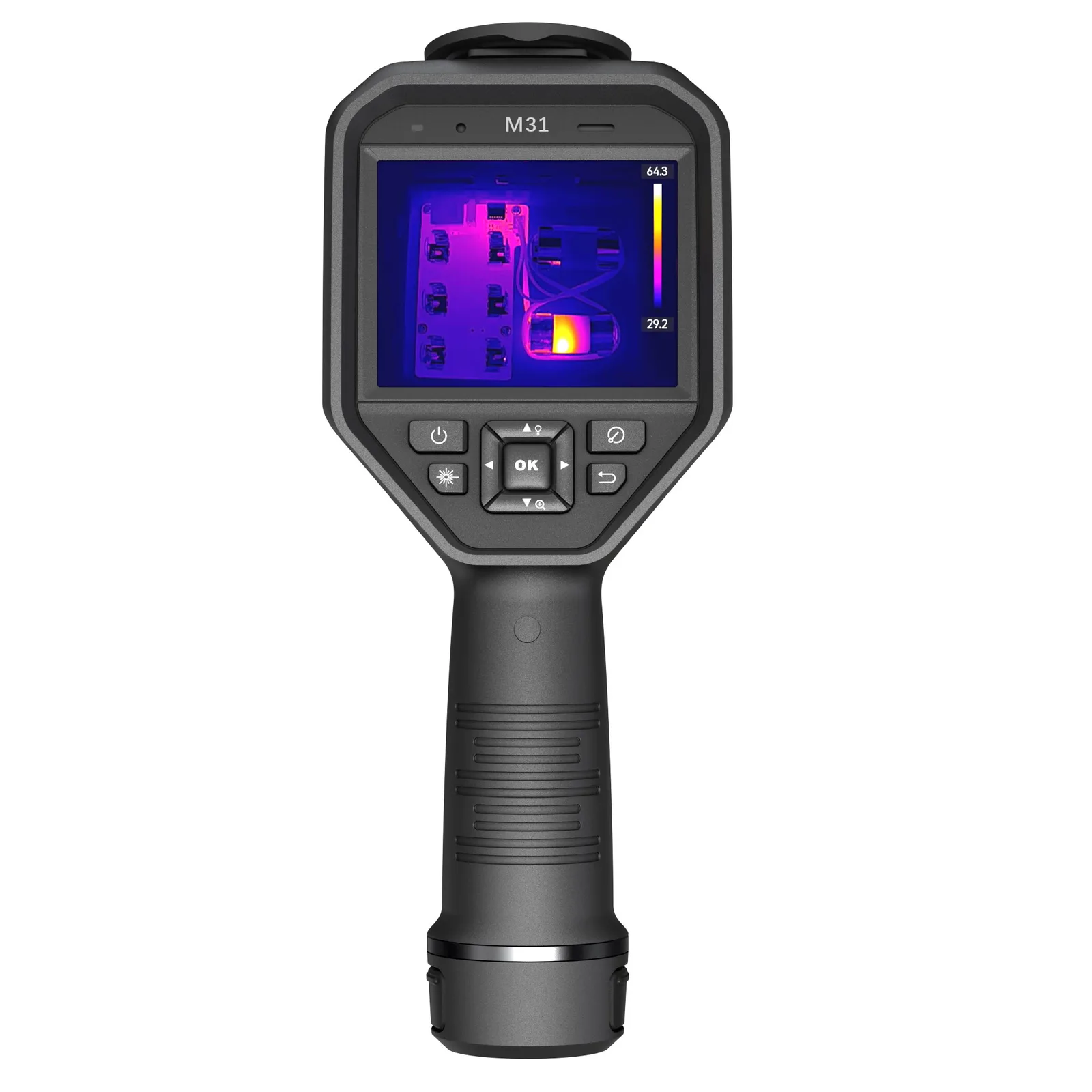

HIKMICRO M31
Why choose it
Adjust the manual focus for the distance of the component you are inspecting, then review the thermal image on the 3.5 inch touchscreen.1
The details
Specifications
Core specifications11
| Thermal resolution | 110,592 pixels1 |
|---|---|
| Thermal sensitivity | Less than 35 mK (Environment: 25°C; Configuration: F#1.0)1 |
| Maximum measurable temperature | 650 °C1 |
| Battery runtime | Approx. 4 h1 |
| Screen size | 3.5 in1 |
| Frame rate | 30 Hz1 |
| Weight | Approx. 720 g1 |
| Wireless | Wifi1 |
| Visible camera | Yes1 |
| Minimum measurable temperature | -20 °C1 |
| IP rating | IP541 |
More specifications7
| Accuracy: degree component | 2 °C (Environment: Ambient temperature 15°C to 35°C; object temperature above 0°C; Test method: Maximum of ±2°C or ±2%)1 |
|---|---|
| Laser pointer | Yes1 |
| Detail overlay | Yes1 |
| Super-resolution enhancement | Yes (Configuration: Captured images only)1 |
| Data port | USB Type-C1 |
| Power options | Interchangeable and rechargeable Li-ion battery1 |
| Focus | Manual Focus1 |
