Handheld Thermal Cameras

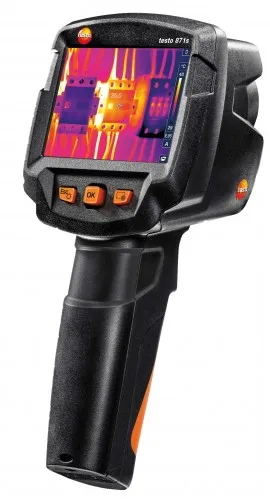

Testo 871s
Why choose it
The 3.5 inch screen lets you inspect the thermal image on the camera, while its visible camera adds a normal view to help identify the part.1
The details
Specifications
Core specifications9
| Thermal resolution | 43,200 pixels2 |
|---|---|
| Thermal sensitivity | Less than 80 mK1 |
| Maximum measurable temperature | +650 °C (Tested configuration: Measuring range 2)1 |
| Battery runtime | 4 h1 |
| Screen size | 3.5 in1 |
| Frame rate | 9 Hz1 |
| Weight | 510 g1 |
| Visible camera | Yes1 |
| IP rating | IP541 |
More specifications6
| Accuracy: degree component | 2 °C (Test method: ±2 °C, ±2 % of measured value (higher value applies))1 |
|---|---|
| Image storage | Internal memory (2.8 GB)1 |
| Super-resolution enhancement | Yes1 |
| Data port | USB 2.0 micro B1 |
| Power options | lithium ion rechargeable battery1 |
| Focus | Fixed focus1 |
Specifications not documented (6)
Wireless, Minimum measurable temperature, Body style, Laser pointer, Detail overlay, Add-on lenses.
