Handheld Thermal Cameras

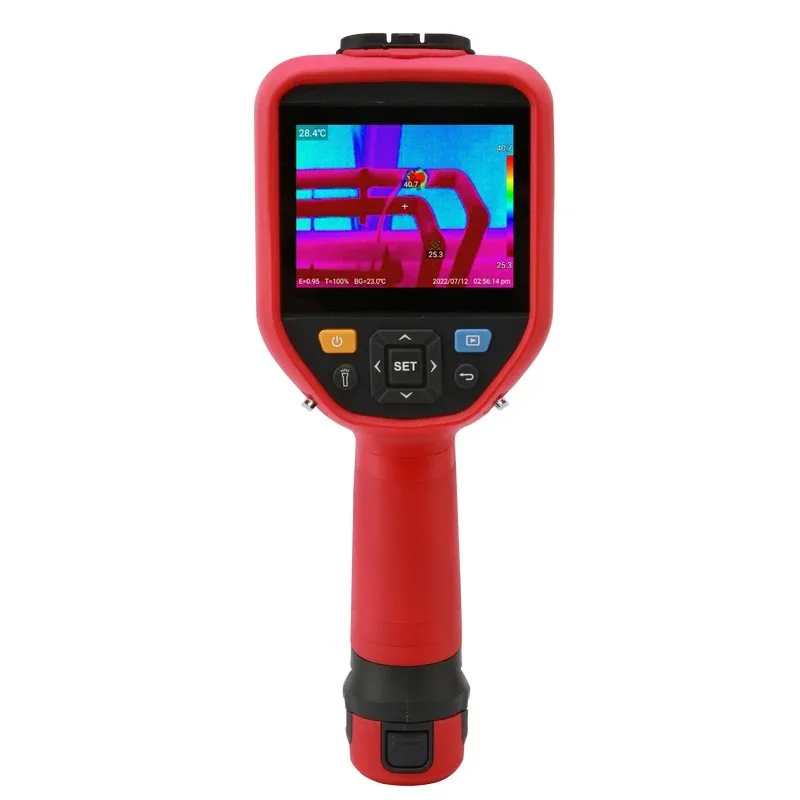

UNI-T UTi256G

Why choose it

Its manual focus lets you adjust the thermal view to your inspection distance, while the 3.5 inch touchscreen gives you an on-camera view of the result. Its battery pack can be removed between sessions.¹²

Explore Handheld Thermal Cameras Explore specifications

Focus: manual¹
Screen size: 3.5 in¹
Power options: 5200mAh detachable Li-ion battery pack (UT-M17)²

The details

Specifications

Core specifications11

UNI-T UTi256G: core specifications
Thermal resolution	49,152 pixels¹
Thermal sensitivity	Up to 40 mK²
Maximum measurable temperature	550 °C¹
Battery runtime	Approx. 5 h (Tested configuration: Wi-Fi off)²
Screen size	3.5 in¹
Frame rate	Up to 30 Hz²
Weight	880 g²
Wireless	Wifi²
Visible camera	Yes²
Minimum measurable temperature	-20 °C¹
IP rating	IP54²

More specifications7

UNI-T UTi256G: more specifications
Accuracy: degree component	2 °C (Test method: ±2°C or ±2%, whichever is greater)¹
Image storage	8GB Internal & 32GB Micro SD card²
Laser pointer	Yes¹
Detail overlay	Yes²
Data port	Type-C²
Power options	5200mAh detachable Li-ion battery pack (UT-M17)²
Focus	manual¹
