Handheld Thermal Cameras

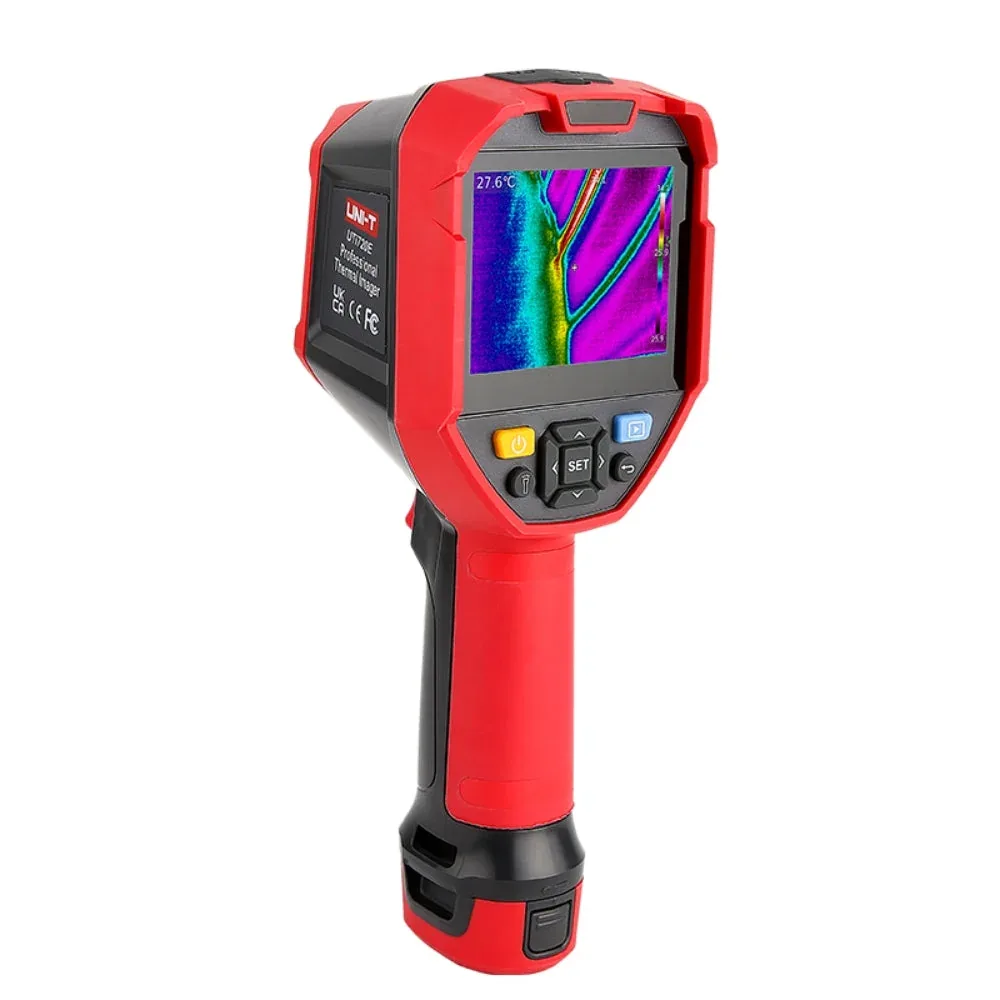

UNI-T UTi720E

Why choose it

Its detachable battery pack lets you replace a depleted pack between inspections. The maker rates runtime at at least three hours with Wi-Fi off, so check that condition when planning a session.¹

Explore Handheld Thermal Cameras Explore specifications

Power options: Detachable Li-ion battery pack (3.7V 5200mAh)¹
Battery runtime: At least 3 h (Test method: Wi-Fi off)¹
Thermal resolution: 49,152 pixels²

The details

Specifications

Core specifications11

UNI-T UTi720E: core specifications
Thermal resolution	49,152 pixels²
Thermal sensitivity	Less than 50 mK (Environment: Ambient temperature25°C)³
Maximum measurable temperature	+550 °C²
Battery runtime	At least 3 h (Test method: Wi-Fi off)¹
Screen size	3.5 in²
Frame rate	Up to 25 Hz¹
Weight	654 g¹
Wireless	Wifi¹
Visible camera	Yes²
Minimum measurable temperature	-20 °C¹
IP rating	IP54²

More specifications6

UNI-T UTi720E: more specifications
Accuracy: degree component	2 °C (Environment: Ambient temperature25°C; Test method: Object temperature -10°C to550°C; ±2°C or ±2%, whichever is greater)³
Image storage	16GB Micro SD card¹
Detail overlay	Yes²
Data port	Type-C¹
Power options	Detachable Li-ion battery pack (3.7V 5200mAh)¹
Focus	Focus Free¹
